Hot Dipped Galvanizing Process Explained: Step-by-Step Guide
Hot-dip galvanizing is one of the most effective methods for protecting steel from corrosion. The process creates a metallurgically bonded zinc coating that can protect steel for 50+ years in most environments. Whether you are sourcing galvanized steel pipes, galvanized steel coils, or structural sections, understanding the galvanizing process helps you evaluate product quality and make better purchasing decisions.
What Is Hot-Dip Galvanizing?
Hot-dip galvanizing is a process in which cleaned steel is immersed in a bath of molten zinc at approximately 450°C (842°F). The zinc reacts with the steel surface to form a series of zinc-iron alloy layers, topped by a layer of pure zinc. This metallurgical bond is far stronger than a mechanical coating - it cannot chip, peel, or flake off under normal conditions.
The resulting coating provides two types of protection:
Barrier protection: The zinc layer physically separates the steel from corrosive elements in the environment
Sacrificial (cathodic) protection: Zinc is more electrochemically active than steel, so it corrodes preferentially, protecting the steel even at scratches and cut edges
The Hot-Dip Galvanizing Process: Step by Step
Step 1: Surface Preparation - Degreasing
The first step removes organic contaminants such as oil, grease, and drawing lubricants from the steel surface. The steel is immersed in a hot alkaline cleaning solution (typically 70-90°C) containing sodium hydroxide or similar degreasing agents. This step is critical because any oil or grease remaining on the surface will prevent the zinc from bonding properly.
Quality check: After degreasing, the surface should be uniformly water-break free - water should sheet evenly across the surface without beading, indicating all organic contaminants have been removed.

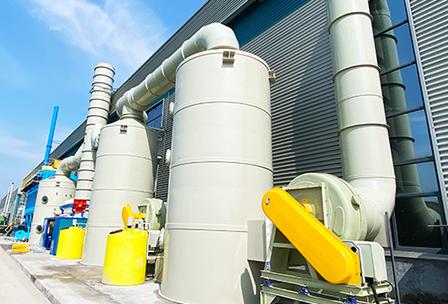

Step 2: Surface Preparation - Acid Pickling
Next, the steel is immersed in a dilute hydrochloric acid (HCl) or sulfuric acid (H₂SO₄) solution to remove rust, mill scale, and oxides. This step etches the steel surface, creating a slightly rough texture that promotes zinc adhesion. Typical acid concentration is 5-15% HCl at room temperature, with immersion times of 5-30 minutes depending on the level of oxidation.
Step 3: Surface Preparation - Rinsing
Between each chemical treatment step, the steel must be thoroughly rinsed with clean water to prevent cross-contamination of chemical solutions. Double rinse tanks are often used to ensure complete removal of acid residues.
Step 4: Fluxing
Fluxing is a critical step that prepares the steel surface for zinc bonding. The steel is immersed in a flux solution - typically zinc ammonium chloride (ZnCl₂·2NH₄Cl) at 60-80°C. The flux serves multiple purposes:
Removes any remaining oxide film that may have formed after pickling
Prevents new oxidation before the steel enters the zinc bath
Lowers the surface tension of the molten zinc, ensuring complete wetting
Promotes the formation of a uniform zinc-iron alloy layer
After fluxing, the steel is dried in a drying oven at 100-120°C to evaporate moisture before entering the molten zinc bath.
Step 5: Zinc Bath Immersion (Galvanizing)
This is the core step of the process. The dried steel is lowered into a bath of molten zinc at 445-465°C. The immersion time depends on the steel's thickness and complexity - typically 3-10 minutes. During immersion, the zinc reacts with the steel surface to form multiple layers:
Gamma layer (Fe₃Zn₁₃): Innermost layer, 75-78% iron, very thin and hard
Delta layer (FeZn₇): 90-93% zinc, medium thickness, provides hardness
Zeta layer (FeZn₁₃): 94-95% zinc, thickest alloy layer, provides the main barrier
Eta layer (pure zinc): Outermost layer, 100% zinc, provides sacrificial protection
The total coating thickness typically ranges from 60 to 275 g/m² depending on immersion time, steel composition, and bath temperature.
Step 6: Withdrawal and Cooling
The steel is slowly withdrawn from the zinc bath at a controlled rate to ensure uniform coating thickness and prevent zinc drips. The withdrawal speed affects coating thickness - slower withdrawal produces thicker coatings. After withdrawal, the galvanized steel is cooled either in air or quenched in water to solidify the zinc coating.
Step 7: Quenching and Passivation (Optional)
For some applications, the galvanized steel is quenched in a water-based passivation solution to prevent "white rust" (zinc oxide/hydroxide) formation during storage and transport. Chromate passivation was traditionally used, but environmentally friendly alternatives such as molybdate or silicate-based passivation are now common.
Step 8: Final Inspection and Testing
Quality inspection is the final and critical step. Standard tests include:
Coating thickness measurement: Using magnetic thickness gauges per ASTM A123 or ISO 1460
Visual inspection: Checking for uniform appearance, absence of bare spots, no peeling or blisters
Adhesion test: Cross-hatch or bend test to verify coating adhesion
Embrittlement check: Verify the steel has not become brittle during galvanizing
Coating Thickness Standards
| Standard | Material | Min. Coating (g/m²) | Min. Thickness (μm) |
|---|---|---|---|
| ASTM A123 | Steel pipe | 458 | 64 |
| ISO 1461 | Steel ≥6mm | 350 | 50 |
| EN 10346 | Steel sheet | 120-275 | 17-39 |
| GB/T 13912 | Steel ≥6mm | 305 | 43 |
Common Defects and How to Avoid Them
| Defect | Cause | Prevention |
|---|---|---|
| Bare spots (uncoated areas) | Incomplete cleaning, flux depletion | Ensure proper degreasing and pickling; maintain flux concentration |
| Zinc drips and runs | Fast withdrawal, low bath temperature | Control withdrawal speed; maintain bath at 450-465°C |
| Ash inclusions | Zinc ash on bath surface not removed | Skim zinc ash before immersion and during withdrawal |
| Gray coating (no spangle) | High silicon content in steel (Sandelin effect) | Use low-silicon steel (Si ≤0.03% or 0.15-0.25%) |
| White rust during storage | Moisture condensation on fresh galvanized surface | Apply passivation; store in dry, ventilated conditions |
Frequently Asked Questions
q:How thick is a hot-dip galvanized coating?
A:Hot-dip galvanized coating thickness typically ranges from 50 to 200 μm (350-1400 g/m²), depending on steel thickness, immersion time, and steel composition. For standard structural steel, the minimum coating per ASTM A123 is approximately 64 μm (458 g/m²).
Q:Does hot-dip galvanizing weaken steel?
A:No. The galvanizing temperature (450°C) is well below the transformation temperature of steel, so it does not affect the steel's mechanical properties. However, high-silicon steel may experience some embrittlement - always specify low-silicon steel for galvanizing.
Q:How long does hot-dip galvanizing last?
A:In typical atmospheric conditions, hot-dip galvanized coating provides 50+ years of maintenance-free protection. In highly corrosive environments (coastal, industrial), the service life may be 25-40 years. Underground, in neutral soil, galvanized steel can last 75+ years.
Conclusion
The hot-dip galvanizing process is a proven, reliable method for protecting steel from corrosion. By understanding each step - from surface preparation through zinc immersion to final inspection - buyers can better evaluate the quality of galvanized steel products and ensure they meet project specifications.
At Tianjin Kun Yu Technology, all our galvanized steel products undergo rigorous quality control at every stage of the galvanizing process. Our products comply with ASTM, ISO, EN, and GB standards, and we provide Mill Test Certificates with every shipment. Contact us to learn more about our galvanized steel products.
